PZG-series reactor
发布时间：2020/08/14 Pharmaceutical equipment Products 浏览次数：571

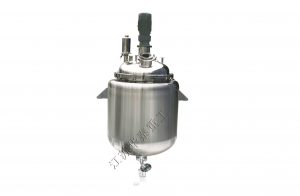

Product Name:PZG-series reactor
Purpose:The epuipment can be applicable to dispense and store liquid material of industries such as chinese traditional medicine, foodstuff,chemical industry.Put steam or cool water into the jacket to keep the material in the premillm temperature.The German-imported agitator can avoid the material spray rich ratio and lean ratio of injection,big infusion.it has the advantages of high dfficiency and ease of operation,there is automatic rolling sprikler equipped in the container to make sure it is cleaned thoroughly.it adopts sus304 or316stainless steel and does mirror polishing.it qualifies GMP standard.
Main Technique Parameter：
| model items | PZG-1000 | PZG-2000 | PZG-3000 | PZG-4000 | PZG-5000 | PZG-6000 | PZG-10000 |
| volume（L） | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | 10000 |
| pressure in interlayer（MPa） | 0.09 | ||||||
| pressure in jacket（MPa） | 0.09 | ||||||
| motor power（kw） | 1.1 | 2.2 | 2.2 | 3 | 3 | 3 | 5.5 |
| condenser area（m3） | 4 | 5 | 6.5 | 8 | 10 | 12 | 18 |
| speed of agitator（rpm） | 20-100 | ||||||
