WZ-series external circulation concentrator
发布时间:2020/08/14 Pharmaceutical equipment Products 浏览次数:311

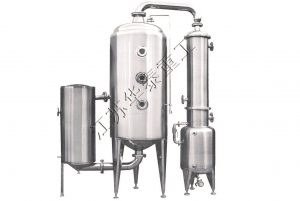

Product Name:WZ-series external circulation concentrator
Purpose:The equipment is widely used in liquid material concentrating of medicine,chemical industry and foodstuff as recovery of organic solvent Especially suitable for thermal sentitive materials such as alcohol extracting liquid,antibioticzymotic liquid,fermentation liquid, fruit juice and milk under vacuum condition making low temperature continuous concentration.It has much better effectiveness in various and small quantity materials.
Features:
1.Alcohol recycling:strong recycling capacity,, adopt vacuum concentrating flow, the production rate has improved 5-10 times than the old types, reduced 30% of energy cost. It has the character that small investment but big profit.
2.concentrating materials: the equipmet adopts the style that combineing externall heating cycling and vacuum vaporizing. Vaporizing speed is very fast, concentrating gravity can reach to 1.3. The liquid materials are concentrated under the completely sealing condition and three is no foaming. The liquid concentrated by this equipment has the features that no pollution and strong flavor. And it is easy to clean(cleaning can be done as soon as opening the upper and lower covers).The machine is easy to operate, covers small areas, the heater and vaporizer adopt the stainless steel heat keeping structurre, the shell is made of stainless steel and the surface is mirror or matted process.
Main Technique Parameter:
Model Items | WZ-300 | WZ-500 | WZ-1000 | WZ-2000 | WZ-3000 |
Evaporation capacity(kg/h) | 300 | 500 | 1000 | 2000 | 3000 |
Cost steam(kg/h) | 330 | 550 | 1100 | 2200 | 3300 |
Steam pressure(Mpa) | <0.1Mpa | ||||
Vacuum degree(Mpa) | 0.06~0.08 | ||||
Heat area(m2) | 4.5 | 7 | 14 | 28 | 56 |
Condenser area(m2) | 6 | 10 | 20 | 40 | 60 |
